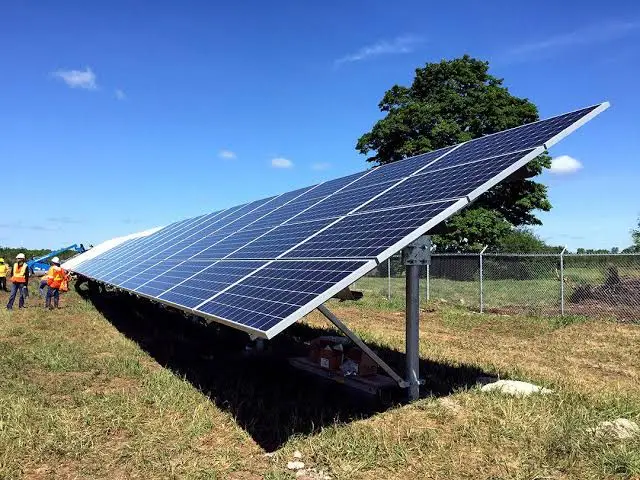

Ground Mount Solar System
High-Capacity Ground Mounted Solar Power Plants
Engineered for maximum kilowatt-hour yield per acre. Northsun Solar Corporation delivers heavy-duty ground-mounted solar infrastructure for industrial plants, commercial campuses, agricultural land, and utility-scale solar farms across India.
25+ Yrs
Structural & Panel Lifetime
170 km/h
99.2%
Solar Plant Capacity & Price Estimator
Select your required system capacity to view immediate land footprint, panel array requirements, generation estimates, and direct pricing details.
Engineering Excellence
Built to withstand extreme climate conditions, high wind loads, and seismic movements over a 25+ year operating lifespan.
Hot-Dip Galvanized Racking (HDG)
Heavy steel structures coated with minimum 80-micron zinc galvanization compliant with IS 2062 & IS 4759 standards for ultimate rust prevention.
High Wind Resistance (170 km/h)
FEA (Finite Element Analysis) tested purlins and rafter designs engineered to endure cyclonic wind gusts up to 170 km/h with zero structural failure.
Mono PERC & Bifacial Modules
Tier-1 high efficiency solar modules with dual-glass bifacial technology, capturing ground-reflected albedo light for up to 15% extra generation.
Central & String Inverters
High-conversion rate utility inverters (>98.8% efficiency) equipped with multiple MPPT trackers, active cooling, and IP65 outdoor protection.
SCADA & Remote Monitoring
Cloud-connected IoT telemetry tracking real-time kilowatt generation, string voltage, weather sensor telemetry, and automatic error alerts.
Comprehensive Earthing & LA
Chemical gel earthing pits with maintenance-free copper-bonded electrodes and Early Streamer Emission (ESE) lightning arrestors.
Foundation Architecture Comparison
We evaluate soil bearing capacity (SBC), topography, and wind loads to deploy the optimal ground foundation.
| Foundation Type | Best Suited Soil / Land | Installation Speed | Ground Impact | Structural Suitability |
|---|---|---|---|---|
|
Ramming / Direct Driven Pile |
Cohesive soils, clay, medium-dense sand without large boulders |
Fastest (Automated) |
Zero concrete required, easy land restoration |
Standard Ground Projects |
|
Cast-In-Situ Concrete Augered Pile |
Rocky terrain, loose soil, uneven agricultural fields |
Moderate (Curing Time) |
Requires civil RCC civil work |
Heavy Wind / Rocky Soil |
|
Concrete Ballast Block Frame |
Landfills, non-penetrative sites, rocky ground, short-term lease land |
Moderate |
100% surface mounted, zero excavation |
Non-Penetrative Grounds |
|
Single-Axis Smart Tracker System |
Flat large acres, utility scale (>1 MW) high irradiation zones |
Complex Mechanical |
Driven pile base with motor drive units |
+18–25% Extra Generation |
